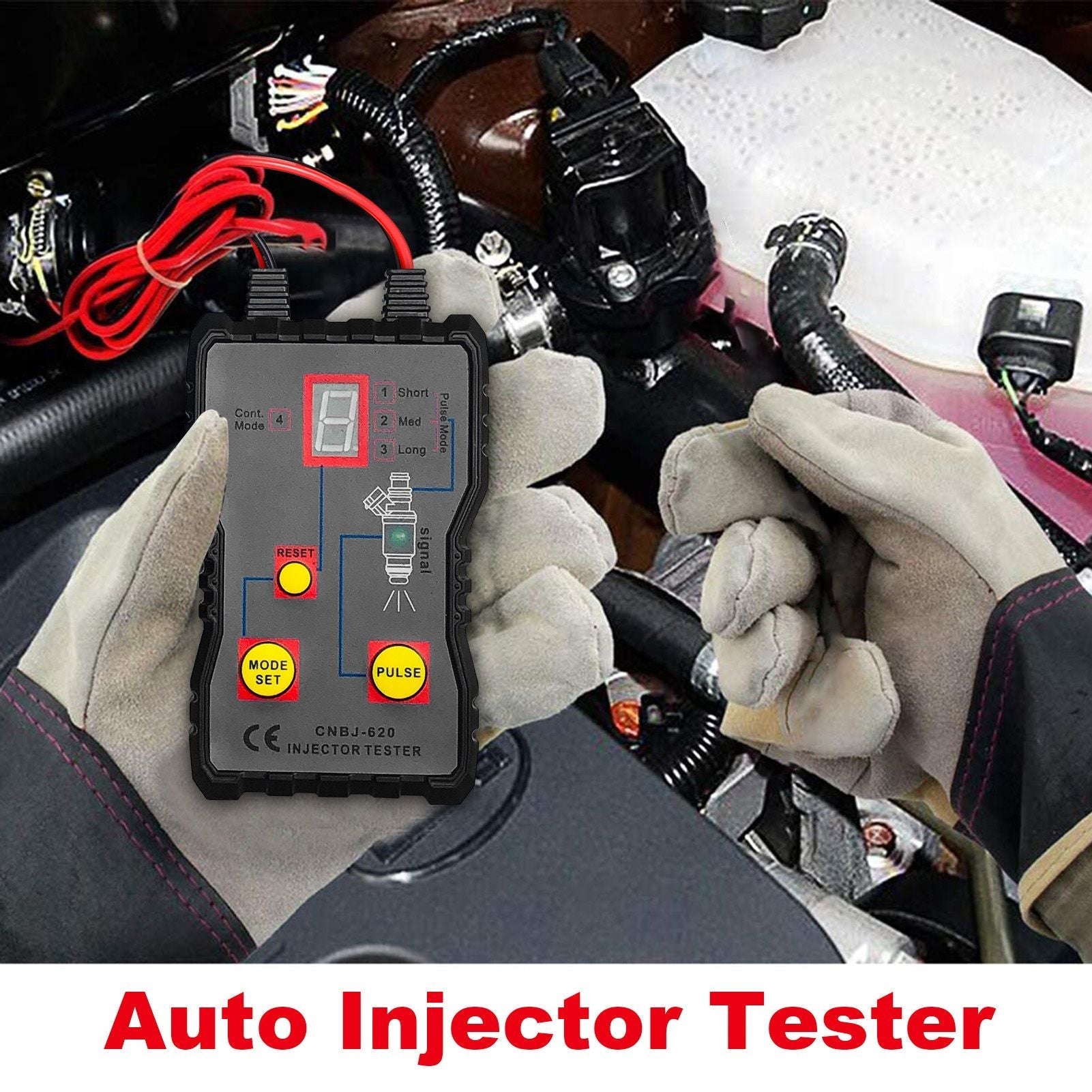

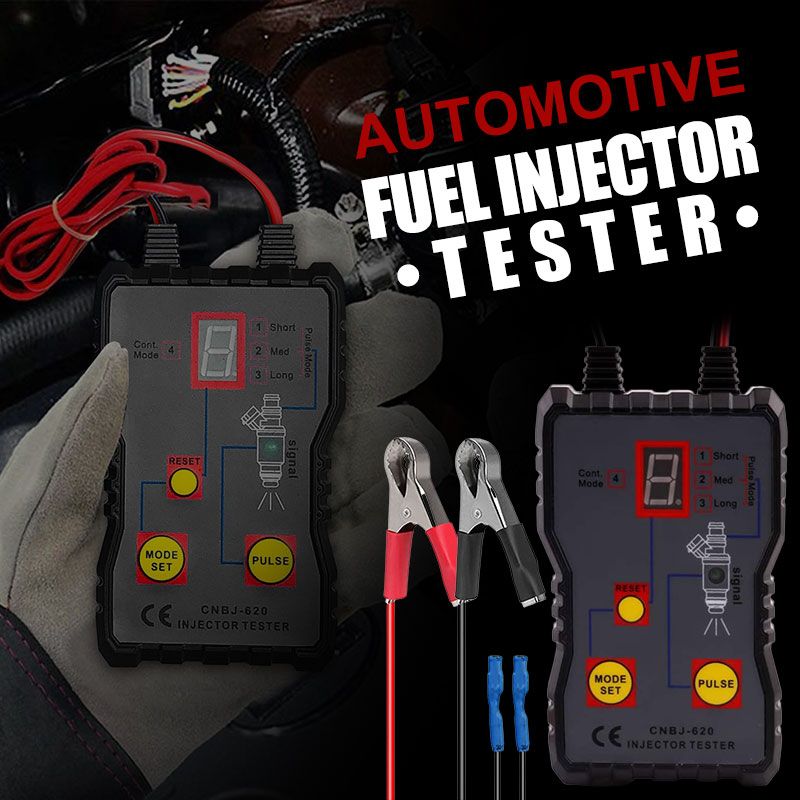

Pousbo® Automotive Fuel Injector Tester

• ⏰TIPS: All goods are authentic, with genuine patents, counterfeit must be investigated! Customers, please identify our products!!!
• 😊If you are not satisfied with the goods you received, please contact us within 15 days after receiving, we will give you the best help!
• 🚢 Shipping>>Worldwide express shipping available.
• 🔥92.86% of customers buy 2 or more

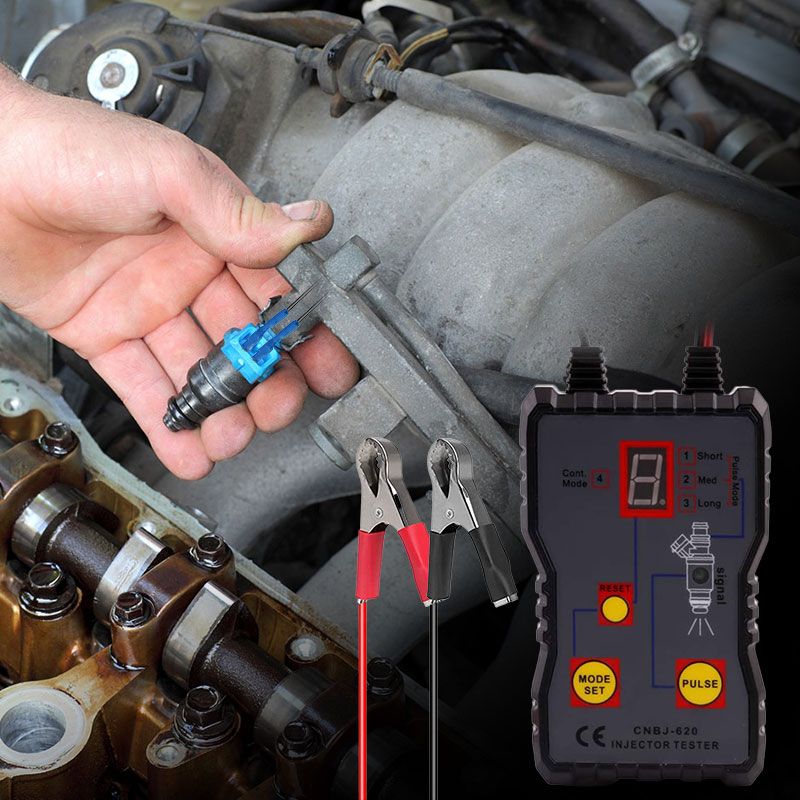

The tester can help diagnose injector problems, you can use it to test each injector individually to help identify stuck, leaking or burnt-out conditions.

KEY FEATURES

* This injector tester with 41.5cm/ 16.3 inches test lead can work with any fuel pressure tester.

* 4 Modes -- Large LED display with 4 pulse modes- Short/ Medium/ Long/ Continuous modes help to identify good or bad injectors.

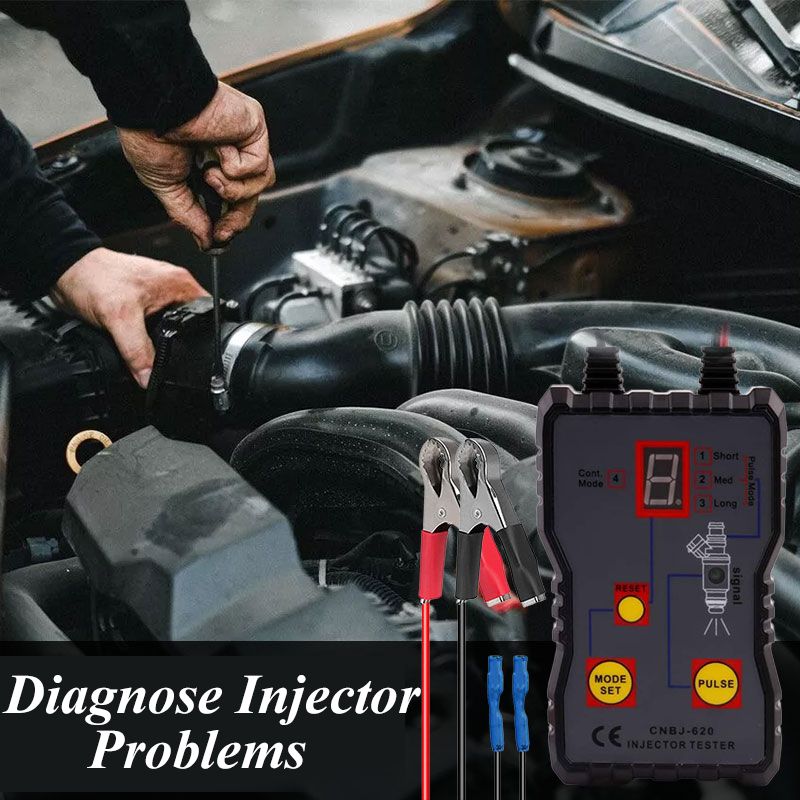

* Diagnose Injector Problems -- You can use it to test each injector individually to help identify stuck, leaking, or burnt-out conditions.

* Works with the engine off and a pulse timer may be used with the fuel pressure gauge.

* The injector cleaner adaptor kit easily cleans almost all types of car motorcycle fuel injectors.

* Powered by 12V vehicle battery

OPERATION INSTRUCTION

*1. Turn off the vehicle’s engine

*2. Connect the black clip to the negative terminal of the vehicle battery, and connect the red clip to the positive terminal of the battery.

*3. Locate the fuel injector which you want to test, then remove the electrical cable from this injector and connect the tester’s two pulse output terminals to the electrical connector of this injector.

*4. Press the MODE SET key to select the desired pulse mode, and the display shows the current pulse mode.

*5. After you have selected the desired pulse mode, press the PULSE key.

The tester outputs a pulse to the injector under test, and the pulse signal indicator will light as an indication.

NOTE: Gasoline cars only, NOT diesel engines.

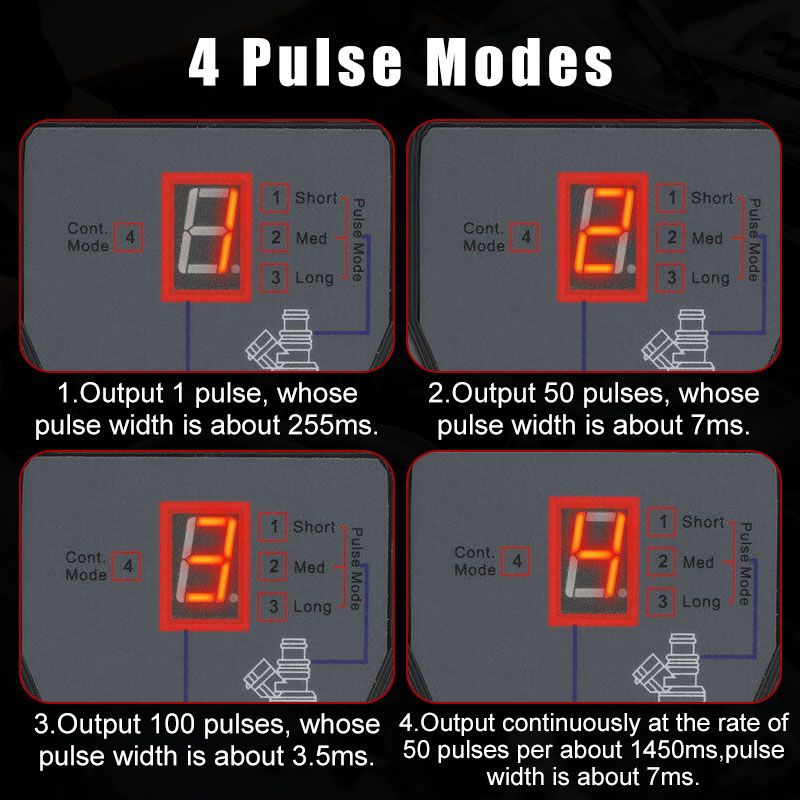

EXPLANATION FOR THE 4 MODES

Mode 1: the tester will output 1 pulse, whose pulse width is about 255ms.

Mode 2: the tester will output 50 pulses, whose pulse width is about 7ms.

Mode 3: the tester will output 100 pulses, whose pulse width is about 3.5ms.

Mode 4: the tester will output continuously at the rate of 50 pulses per about 1450ms, whose pulse width is about 7ms.

At any time, you can press the PULSE key again to stop outputting the pulse.

Operation Tips: Re-connect the Battery when you SWITCH the MODE.

SPECIFICATION

Material: ABS Shell + Electronic Components

Color: As Shown

Product Size: 147*82*92mm

Weight: 200g

Operation Environment: 0~40℃, Relative Humidity: ＜80%

Storage Environment: -20~50℃, Relative Humidity: ＜85%

Package Includes: 1 * Pousbo® Automotive Fuel Injector Tester

NOTE

Please allow slight measurement deviation due to manual measurement.

Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures.
